CML INNOVATIVE TECHNOLOGIES  19010351  LED INDICATOR, CF, 24V, GREEN

CML INNOVATIVE TECHNOLOGIES 19010351
Manufacturer Part No:
19010351
Order Code:
SC07761

Image is for illustrative purposes only. Please refer to product description.

Product Overview

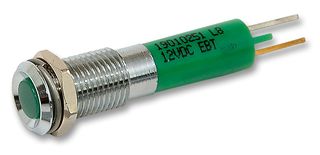

The 19010351 is a 24VDC 2-connector panel-mount standard green LED Indicator with satin chrome metal super-flat bezel and M8 screw thread. It has brass anode and tinned cathode terminal pin assignment, Makrolon 2805 plastic construction, diffused lens surface and tab terminals connector.
  • -25 to +60°C Operating temperature range
  • 10% Voltage tolerance

Product Information

LED Colour:
Green
Operating Voltage:
24VDC
Mounting Hole Dia:
8mm
Forward Current If:
20mA
Luminous Intensity:
8mcd
IP / NEMA Rating:
IP67
Packaging:
Each
Product Range:
-
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • LED Lighting

Legislation and Environmental

Country of Origin:
Germany

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85414010
Weight (kg):
.004
