GW INSTEK  PSP-603  BENCH PSU, PROG, 60V, 3.5A

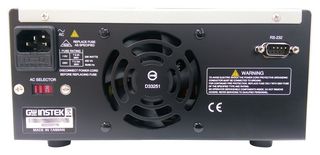

GW INSTEK PSP-603
GW INSTEK PSP-603

Image is for illustrative purposes only. Please refer to product description.

GW INSTEK PSP-603
GW INSTEK PSP-603

Product Overview

The PSP-603 is single output, 200W, programmable switching DC power supplies. OVP, OCP, OTP, and OPP protect the psu and its loads from unexpected conditions. It has a large LCD panel to display output and parameter simultaneously and a key lock feature to prevent changing the settings. It is suitable for generic bench-top applications in laboratories and educational institutions
  • LCD display
  • Output on/off control
  • 3-step fan speed control
  • Voltage/current/power settings
  • Key lock to avoid operation error
  • OVP, OCP & OPP protection
  • Normal, +% & -% output operation key
  • High efficiency and high power density
  • Standard interface:RS-232C
  • Optional European type jack terminal

Product Information

Power Supply Output Type:
Programmable
No. of Outputs:
1 Output
Output Voltage Min:
0V
Output Voltage Max:
60V
Output Current Min:
0A
Output Current Max:
3.5A
Power Rating:
200W
Supply Voltage Min:
115VAC
Supply Voltage Max:
230VAC
Warranty:
-
Product Range:
PSP Series
Plug Type:
Euro, UK
Load Regulation:
0.05 %
Width:
225 mm
Length:
305 mm
Height:
100 mm
Input Voltage:
-
Supply Voltage:
230 V
External Depth:
305 mm
External Width:
225 mm
Weight:
4 kg
Output Current:
3.5 A
Approval Bodies:
CE
External Length / Height:
100 mm
SVHC:
No SVHC (15-Jun-2015)
Output Voltage:
60 V

Find similar products  grouped by common attribute

Applications

  • Test & Measurement;
  • Maintenance & Repair

Contents

User Manual X 1, Power Cord X 1, Test Lead GTL-104*1 ; European Test Lead GTL-204* 1

Legislation and Environmental

Country of Origin:
Taiwan

Country in which last significant manufacturing process was carried out

Tariff No:
85044090
Weight (kg):
4.92
