MH CONNECTORS  MHDTZK15-RA-HI-K  HOOD,DIECAST RAPID ASS 15 WAY

MH CONNECTORS MHDTZK15-RA-HI-K
Technical Data Sheet (122.88KB) EN See all Technical Docs

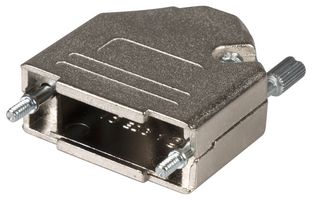

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The MHDTZK15-RA-HI-K is a 15-way full metal D-sub Hood, MHDTZK-RA series, with metalized grommet, made of zinc with nickel plated finish, Accepts cable up to 13mm outer diameter, top cable entry. Excellent EMI shielding, strain relief inserts ensure a secure termination.
  • Kitted size
  • Re-openable
  • Full metal jawscrew as standard
  • UNC 4-40 (Standard) Thumbscrews
  • -40 to +120°C Operating temperature range

Product Information

Product Range:
-
D Sub Shell Size:
DA
Cable Exit Angle:
180°
Connector Body Material:
Zinc Body
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial

Related Categories

Legislation and Environmental

Country of Origin:
Great Britain

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85369010
Weight (kg):
.06
