MULTICOMP  MH10577  SOCKET, D IDC 25WAY

MULTICOMP MH10577
MULTICOMP MH10577
See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

MULTICOMP MH10577
MULTICOMP MH10577

Product Overview

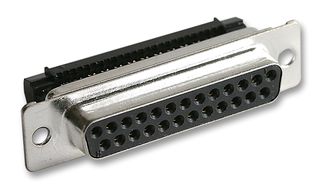

The MH10577 is a 25-way unthreaded D-sub Socket with 1.5µ tin and 0.2µ gold plated copper alloy contacts and a black glass filled polyester insulator. This MH105 series female connector has tin plated stamped steel shell and IDC/IDT type contact termination.
  • Available with optional 4-40 UNC threads
  • Design allows use with standard back shells
  • 1.5A, 1000V Electrical ratings
  • <10mR Contact resistance
  • 5000MR Insulation resistance
  • -55 to +125°C Operating temperature range

Product Information

Product Range:
Metal D Sub Tin & Dimple
D Sub Shell Size:
DB
Gender:
Receptacle
No. of Contacts:
25Contacts
Connector Body Material:
Steel Body
Contact Termination Type:
IDC / IDT
Contact Plating:
Tin Plated Contacts
Contact Material:
Copper Alloy
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Communications & Networking

Legislation and Environmental

Country of Origin:
Great Britain

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85369010
Weight (kg):
.02
