ON SEMICONDUCTOR  MUR420RLG  DIODE, ULTRA FAST 4A 200V

ON SEMICONDUCTOR MUR420RLG
Manufacturer Part No:
MUR420RLG
Order Code:
SC07380
Product Range
MUR42 Series

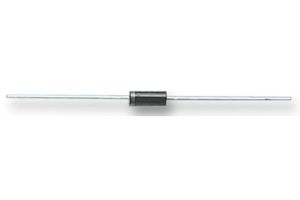

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The MUR420RLG is a SWITCHMODE™ ultra-fast axial-lead Power Rectifier with moulded epoxy case. This state-of-the-art device is designed for use in switching power supplies, inverters and as free-wheeling diodes.
  • Cathode indicated by polarity band
  • All external surfaces corrosion-resistant and terminal leads are readily solderable
  • Low forward voltage
  • Low leakage current
  • High temperature glass-passivated junction

Product Information

Repetitive Reverse Voltage Vrrm Max:
200V
Forward Current If(AV):
4A
Diode Configuration:
Single
Forward Voltage VF Max:
890mV
Reverse Recovery Time trr Max:
35ns
Forward Surge Current Ifsm Max:
125A
Operating Temperature Max:
175°C
Diode Case Style:
DO-201AD
No. of Pins:
2 Pin
Packaging:
Each
Product Range:
MUR42 Series
Automotive Qualification Standard:
-
SVHC:
No SVHC (12-Jan-2017)

Find similar products  grouped by common attribute

Applications

  • Power Management
  • Industrial

Legislation and Environmental

Country of Origin:
United States

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85411000
Weight (kg):
.0011
