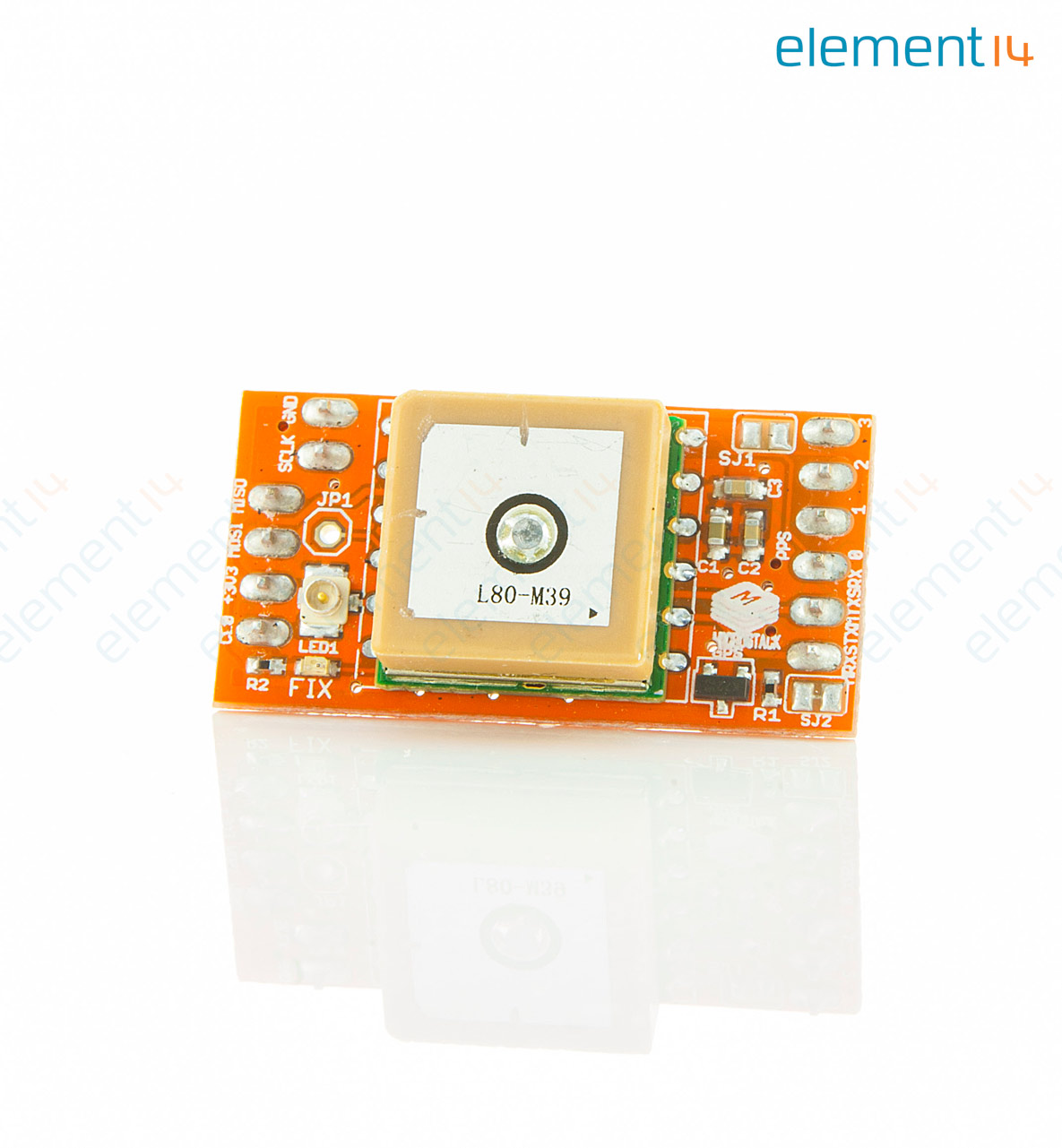

L80 GPS Module Expansion Board for Raspberry Pi -

MICROSTACK GPS

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MICROSTACK GPS
Order Code:
SC13530
Product Range
HATs - Wireless Connectivity

Product Range Selector (HATs - Wireless Connectivity)

See all from this product range

Product Overview

The Microstack GPS is a L80 ultra slim POT (Patch on Top) module with an embedded 15mm x 15mm patch antenna. This Microstack module adds GPS positioning functions to all platforms compatible with the Microstack framework. This space saving design makes L80 module to become perfect for the miniature devices. L80 has an exceptional performance both in acquisition and tracking. Combining advanced AGPS called EASY (Embedded Assist System) and proven AlwaysLocate technology, L80 achieves highest performance and meets industrial standard. EASY technology ensures L80 can calculate and predict orbits automatically using the ephemeris data stored in internal flash memory, so L80 can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate technology, L80 can adaptively adjust the on/off time to balance between positioning accuracy and power consumption according to the environmental and motion conditions.
  • Low power (Acquisition mode 25mA, Tracking 20mA, down to 3mA with AlwaysLocate mode)
  • Short time to fix
  • Embedded high sensitivity internal patch antenna
  • Optional external antenna connection
  • 1575.42MHz receiver with 22 channel for tracking and 66 channel for acquisition
  • High sensitivity receiver with anti jamming
  • DGPS, SBAS (WASS, EGNOS/MSAS/GAGAN) compatible
  • Built in self contained data logging
  • Programmable automatic wake/sleep periods
  • AlwaysLocate mode for automatic sleep during inactivity and wake on movement to save power

Applications

Communications & Networking

Footnotes

The Microstack GPS can be used with Microstack adapter baseboards including Raspberry Pi.

Warnings

ESD sensitive device. Precaution should be used when handling the device in order to prevent permanent damage.

Product Information


:
Broadcom

:
ARM

:
ARM11

:
BCM2835

:
BCM2xxx

:
Compatible with Raspberry Pi 2 Model B, Raspberry Pi B+/A+/B/A

:
Add-on GPS L80 Module Board

:
HATs - Wireless Connectivity
