DC-DC Voltage Step-Down Module, LM2596S - WPM404
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWHADDA
Manufacturer Part NoWPM404Copy
Order CodeSC18724
Also Known AsGTIN UPC EAN: 5410329725419
44 In Stock
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | £7.15 |
Price for:Each
Minimum: 1
Multiple: 1
£7.15 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWHADDA
Manufacturer Part NoWPM404Copy
Order CodeSC18724
Also Known AsGTIN UPC EAN: 5410329725419
Silicon Manufacturer-
Core Architecture-
Core Sub-Architecture-
Silicon Core Number-
Silicon Family Name-
For Use WithArduino
Kit ContentsDC Step-down Module
Product Overview

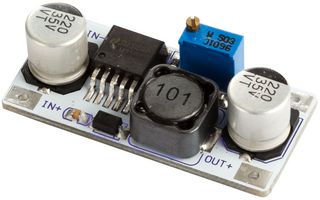

Adjustable DC voltage step-down module based around the LM2596S chip.
- Adjustable voltage step-down module
- Input voltage: 3V to 40V DC
- Output voltage: 1.25V to 35V DC
- Output current: 2.5A (maximum)
- Dimensions (HxWxD): 12x49x26mm
Notes
Note: Heatsink recommended if more than 10W is applied (not included).
Technical Specifications
Silicon Manufacturer
-
Core Sub-Architecture
-
Silicon Family Name
-
Kit Contents
DC Step-down Module
Core Architecture
-
Silicon Core Number
-
For Use With
Arduino
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85299065
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01
