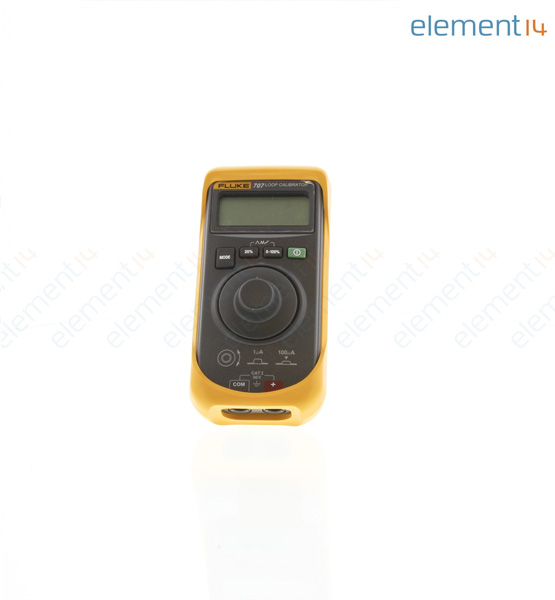

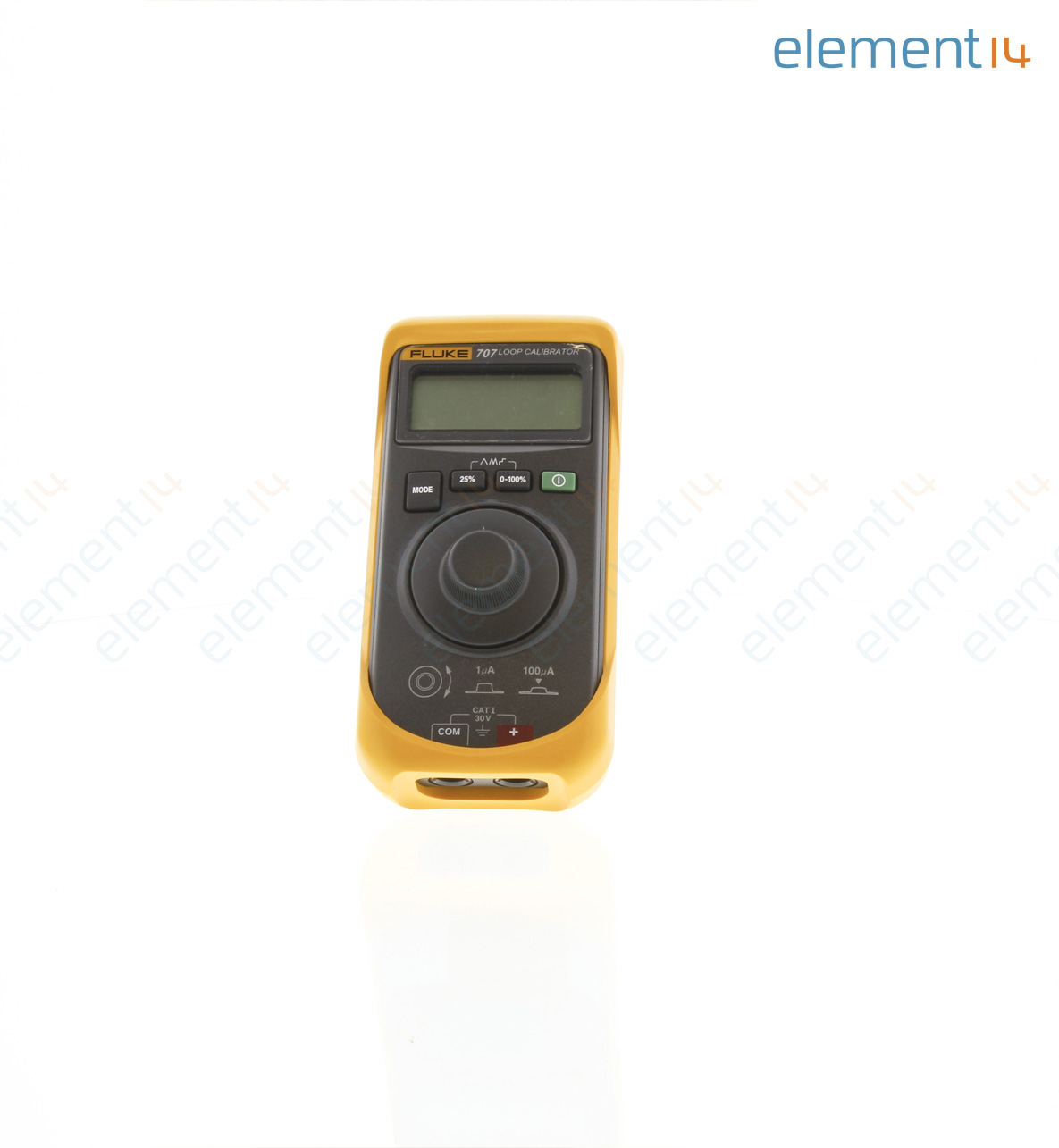

Current Loop Calibrator, 0-28V, 4-20mA - FLUKE 707

FLUKE 707 is a current loop calibrator with quick click knob. It is a high-performance solution for calibration, repair, and maintenance of current loops. It combines the best features of a push-button and knob-base loop calibrator for extremely fast and easy calibration. The large display and simple quick-click rotary button let you make quick selections and adjustments with one hand. Plus, features such as mA sourcing, simulation, and measurement; simultaneous display of mA and % of span, and selectable step or ramp outputs, help you work more efficiently and accurately. And you can quickly change the 9V battery without breaking the calibration seal. It includes HART® compatible resistance connected in series with the loop supply for compatibility with HART communicators. It provides selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests.

• Features push button 25% steps for fast, easy linearity checks
• Includes 0-100% "span check" for fast confirmation of zero and span
• Measures VDC to 28V
• Runs on a single 9V battery that is easily changed without breaking the calibration seal
• Features an innovative output adjustment dial
• Comes with a protective yellow holster with test lead storage and a three year warranty
• Operating temperature range from -10°C to 55°C
• CSA C22.2 No. 1010.1:1992 safety standards
• Size is 152 x 70 x 41mm
• 30V maximum voltage

Applications

Test & Measurement, Industrial Maintenance, Electrical, Safety, Calibration, Maintenance & Repair

Contents

FLUKE 707 loop calibrator with quick click knob, C10 protective yellow holster with flex-stand, (1 set) AC70A alligator clips, (1 pair) TL75 test lead set, NIST- traceable calibration report and data, Quick reference guide, 3-year warranty.

Notes

Calibration services are available (Europe only). Please visit our calibration services page for more details.
