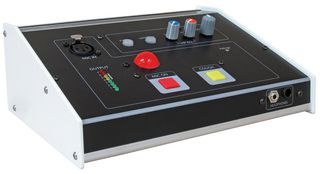

Simultaneous Interpretation Interface - INTERPRETER BOX

This interpreter's Box provides a dedicated solution for those requiring a simultaneous interpretation unit for a single user. It has a single mic input which can be connected via a rear panel or top panel XLR socket. This input is switchable on the rear between a dynamic or a 48V phantom power input. The top panel XLR socket is suitable for gooseneck microphones. There is a single headphone amplifier that is available on 6.35mm jack socket or 3.5mm jack socket. These connections are paralleled and available on the front or the rear panel. It also contains 2x RJ45 socket for Cat5 linking multiple boxes together. The main output is available via a balanced rear panel XLR, or in parallel with an unbalanced RCA phono socket. The unit is powered by a low noise internal switch mode mains IEC power supply. It accepts any AC voltage input from 100 to 240V.

• Specifically designed for interpreters
• Single user unit, but can be linked with other units with Cat5 cable
• Large and clear mic operational light
• Rear panel mic or top panel for gooseneck mics
• Monitor floor input or looped language from another interpreter's box
• Frequency response: 20Hz to 22KHz (mic 80Hz to 10kHz)
• Although designed for simultaneous interpretation use is built to full broadcast audio specifications
• THD: 0.04%
• Noise: -121dBA
• Dimensions (HxWxD): 100x269x172mm
• Weight: 1.6kg
• UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.

Applications

Audio, Broadcast, Consumer Electronics, Hobby & Education, Installations, Live Events, Music, Multimedia

Contents

Interpreter Box, IEC mains cable 2m, handbook
