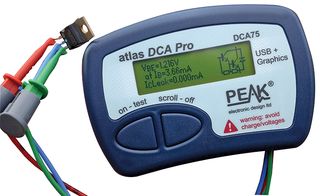

Atlas DCA Pro Advanced Semiconductor Component Analyser -
DCA75
- Manufacturer:
- PEAK PEAK
- Manufacturer Part No:
- DCA75
- Order Code:
- IN06854
- Technical Datasheet:
- DCA75 Datasheet
Product Range Selector (Atlas Analyser Kit)
See all from this product rangeProduct Overview
- Features a graphics display, USB port, PC Software and an enhanced component identification library
- Automatically identify part type (eg, Transistor, JFET, IGBT, Regulator, Zener, Diodes, etc)
- Automatically identify pinout (connect any way round)
- Perform further detailed component analysis with the PC software included
- Complete with premium gold plated hook probes
- Can be used stand-alone or connected to a PC
- Curve Tracing when connected to a PC
- Components supported include:-
- Transistors (including Darlingtons and "digital" transistors)
- Silicon & Germanium types, MOSFETs, enhancement mode and depletion mode types
- JFETs, including normally off SiC types
- IGBTs (insulated gate bipolar transistors)
- Diodes and Diode networks
- LEDs and bicolour LEDs (2 lead and 3 lead types)
- Zener Diodes with measurement of zener voltage up to 9V at 5mA
- Voltage regulators
- Triacs and Thyristors
Contents
Contents: DCA75 tester, 1x AAA Alkaline battery, 1m micro USB cable, PC software on USB flash drive, premium gold plated hook probes & comprehensive printed user guide
Product Information
- :
- Semiconductor Devices
- :
- Atlas Analyser Kit
Technical Documents (2)
8 In stock
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
3 more will be available week commencing 14/07/25
Extra stock is available upon order to the Supplier Lead Time which is approximately 14/07/25
3 more will be available week commencing 14/07/25
Reserving future stockOrder before 6pm
Monday to Friday excluding National Holidays
???PF_PDP_RSP_SUP???
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
- 1+
- 3+
| Quantity | Price | Your Price (Inc. VAT) |
|---|---|---|
| 1+ | £119.00 (£142.80) | ( ) |
| 3+ | £115.00 (£138.00) | ( ) |
