Breadboard Power Module - WPM424
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWHADDA
Manufacturer Part NoWPM424
Order CodeSC21204
Also Known AsGTIN UPC EAN: 5410329725495
3 In Stock
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | £4.92 |
Price for:Each
Minimum: 1
Multiple: 1
£4.92 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWHADDA
Manufacturer Part NoWPM424
Order CodeSC21204
Also Known AsGTIN UPC EAN: 5410329725495
Silicon Manufacturer-
Core Architecture-
Core Sub-Architecture-
Silicon Core Number-
Silicon Family Name-
For Use WithBreadboard Projects
Kit ContentsPower Module
Product Overview

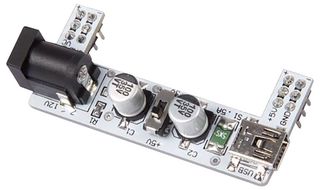

The Whadda WPM424 Power Module is a simple and effective component used to provide the correct voltage to components on a breadboard, ideal for building and testing electronic circuits. The module can be connected to external power supplies with a voltage between 7-12V DC or a USB power source. This module has two power rails, one which always supplies 5V, and the other can be switched between 3.3V or 5V. With a maximum output current of 500mA, it provides enough power for a wide range of projects. The module is designed for ease of use and can be connected directly to most breadboards.
- Input Voltage: 7-12V DC or USB 5V power supply (use regulated supply)
- Output Voltage: 5V DC fixed +3.3V / 5V, switchable
- Maximum Output Current: maximum 500mA, onboard 500mA resettable fuse
- Two Power Rails: 1. Fixed 5V 2. Selectable 3.3V or 5V
- DC Input: 5.5 x 2.1mm plug
Technical Specifications
Silicon Manufacturer
-
Core Sub-Architecture
-
Silicon Family Name
-
Kit Contents
Power Module
Core Architecture
-
Silicon Core Number
-
For Use With
Breadboard Projects
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.027
