2 Channel Phantom Power Supply +48V - ART-PHANTOM2PRO
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | £90.90 |
Product Information
Product Overview

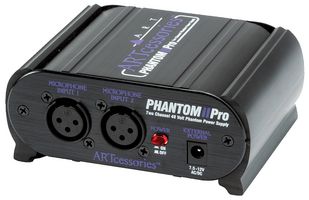

The Phantom II Pro is designed to provide clean, reliable phantom power for one or two condenser microphones - all in a rugged, compact, and portable unit. Innovative low power circuitry generates the higher voltage necessary for powering microphones while maximising battery life. The Phantom II Pro installs between your microphone and a balanced line input on your gear. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimises induced noise, it is the preferred method of connecting audio, especially when long leads are used. It applies in areas including (but not limited to) home, professional recording studios, live sound, PA, permanent installs, DJ, podcasting and broadcasting. Use it with mixers, audio processors, digital audio workstations or anywhere you need phantom power for your microphones.
- Phantom power: 48V DC typical
- Inputs: 2x XLR
- Outputs: 2x XLR
- Power: 9V battery (IEC 6LR61, ANSI-1604A type Alkaline recommended) or external supply 7.5V to 12 V AC/DC, any polarity - none of them supplied
- Battery life: 10h
- Low noise, low distortion circuitry
- Dimensions (HxWxD): 47x117x99mm
- Weight: 0.37kg
Applications
Audio, Business, Domestic, Education, Live Events, Installations, Public, Music
Technical Specifications
Phantom Power Supply
No SVHC (17-Dec-2014)
-
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
Product Compliance Certificate
