Simple Function Generator Project Kit - SFG

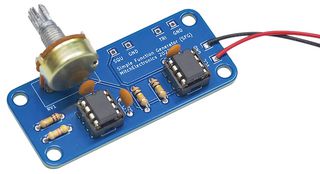

Image is for illustrative purposes only. Please refer to product description.
15 In Stock
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | £5.09 |
| 5+ | £4.73 |
Price for:Each
Minimum: 1
Multiple: 1
£5.09 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMITCHELECTRONICS
Manufacturer Part NoSFGCopy
Order CodeHK01823
Product Range-
SVHCTo Be Advised
Product Overview
The SFG is a simple electronics kit that lets you build a basic function generator with both triangular and square waveforms, complete with variable frequency. The kit is ideal for teaching oscillator circuits with op-amps as well as how function generators can be used in circuit testing. Supplied in kit form, the project can be assembled in under an hour and is a perfect teaching example for classroom lessons.
- Once assembled, the project will generate both a square and triangle output
- Waves are generated by the same source and in the same phase and follow each other constantly
- Onboard potentiometer for adjusting frequency
- Supplied in kit form, the project can be assembled in under an hour
- 5V-20V Operating voltage
- PCB Dimensions: 27x52mm
Technical Specifications
Product Range
-
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85439000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.018
