Raspberry Pi Zero WH - SC0065

Name: RASPBERRY-PI SC0065
Brand: RASPBERRY-PI
SKU: SC20017
Availability: BackOrder

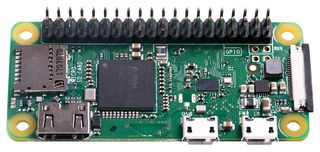

RASPBERRY-PI SC0065 Raspberry Pi Zero WH

Image is for illustrative purposes only. Please refer to product description.

ManufacturerRASPBERRY-PI

Manufacturer Part NoSC0065Copy

Order CodeSC20017

Product RangeRaspberry Pi Zero

Also Known AsGTIN UPC EAN: 0707565827201

Technical Datasheet

Data Sheet

See all Technical Docs

Available for Back Order

Manufacturer Standard Lead Time: 3 week(s)

Notify me when back in stock

Quantity	Price (ex VAT)
1+	£12.48

Price for:Each

Minimum: 1

Multiple: 1

£12.48 (ex VAT)

Line Note

Added to your Order Confirmation, Invoice, and Dispatch note for this order only.

Product Information

ManufacturerRASPBERRY-PI

Manufacturer Part NoSC0065Copy

Order CodeSC20017

Product RangeRaspberry Pi Zero

Also Known AsGTIN UPC EAN: 0707565827201

Technical Datasheet

Data Sheet

Silicon Manufacturer-

SOC TypeBroadcom BCM2835

Core Type32-bit ARM1176JZF-S (ARM v6)

Silicon Family Name-

Core ArchitectureARM

No. of Cores1Cores

GPU-

Core Sub-ArchitectureCortex-A53

Silicon Core Number-

CPU Speed1GHz

RAM Memory Size512MB

Kit ContentsRaspberry Pi Zero WH Board

USB PortsMicro USB OTG

Ethernet Ports-

HDMI Portsmini HDMI x 1

Product RangeRaspberry Pi Zero

Audio / Video InterfaceHDMI, Composite Video

General Purpose I/O-

Display Interface-

Memory Card SupportmicroSD

Camera InterfaceCSI

Wi-Fi ConnectivitySupported 802.11 b/g/n

Bluetooth ConnectivityBluetooth 4.1 BLE

Power InletMicro USB Connector

Power Over Ethernet-

SVHCNo SVHC (04-Feb-2026)

Product Overview

The Raspberry Pi Zero WH expands the Pi Zero family with WiFi and Bluetooth wireless connectivity - all built into the same form factor, making it perfect for a smart home applications and IoT projects. The Pi Zero WH is also fitted with a pre-soldered GPIO header for convenient prototyping.

1GHz Single core CPU with 512MB RAM
BCM43438 2.4GHz WiFi & Bluetooth 4.1 HS Low Energy (BLE)
Mini HDMI display port and Micro USB OTG for data & power
40-pin GPIO header footprint with pre-soldered header
Composite video and reset headers
CSI Camera connector
Dimensions (HxWxD): 5x65x30mm

Applications

Embedded Design & Development, Electronics Design, Hobby & Education, Communications & Networking, Consumer Electronics, IoT (Internet of Things)

Technical Specifications

Silicon Manufacturer

Core Type

32-bit ARM1176JZF-S (ARM v6)

Core Architecture

ARM

GPU

Silicon Core Number

RAM Memory Size

512MB

USB Ports

Micro USB OTG

HDMI Ports

mini HDMI x 1

Audio / Video Interface

HDMI, Composite Video

Display Interface

Camera Interface

CSI

Bluetooth Connectivity

Bluetooth 4.1 BLE

Power Over Ethernet

SOC Type

Broadcom BCM2835

Silicon Family Name

No. of Cores

1Cores

Core Sub-Architecture

Cortex-A53

CPU Speed

1GHz

Kit Contents

Raspberry Pi Zero WH Board

Ethernet Ports

Product Range

Raspberry Pi Zero

General Purpose I/O

Memory Card Support

microSD

Wi-Fi Connectivity

Supported 802.11 b/g/n

Power Inlet

Micro USB Connector

SVHC

No SVHC (04-Feb-2026)

Technical Docs (1)

SC0065 Data Sheet

Legislation and Environmental

Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out

Tariff No:84715000

US ECCN:5A992.c

EU ECCN:NLR

RoHS Compliant:Yes

RoHS

RoHS Phthalates Compliant:Yes

RoHS

SVHC:No SVHC (04-Feb-2026)

Download Product Compliance Certificate

Product Compliance Certificate

Weight (kg):.01
