Reed Switches

: 59 Products Found

Reed Switches

Displaying products for Reed Switches - from our range of leading brand manufacturers.

Magnetic Reed Switches

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Extended Attributes Attributes

Add properties to the table

Select the properties you would like to see added to the columns at the end of the table.

Select All

For Use With

Product Range

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price Ex. VAT (Inc. VAT)	Quantity	For Use With	Product Range
						Sort Acending Sort Decending	Sort Acending Sort Decending

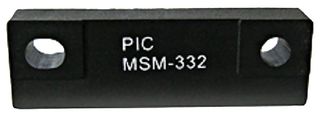

MSM-332	SN37112 Data Sheet + RoHS	Reed Switch Magnet PIC GMBH The MSM-332 from PIC GMBH is a reed switch sensor magnet that is compatible with the MS-332-3-1-0500 20mm reed switches. • Dimensions: 32x10x6mm You previously purchased this product. View in Order History	Each	1+ £3.10 (£3.72) 10+ £2.93 (£3.52) 25+ £2.58 (£3.10)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	MS-324-3-1-0500 Magnet 20mm reed switch	MSM Series
MSM-328	SN37111 Data Sheet + RoHS	Reed Switch Magnet PIC GMBH The MSM-328 from PIC GMBH is a reed switch sensor magnet that is compatible with the MS-328-3-1-0500 and MS-328-4-1-0500 15mm reed switches. • Dimensions: 28.5x19x6.3mm You previously purchased this product. View in Order History	Each	1+ £2.05 (£2.46) 10+ £1.94 (£2.33) 25+ £1.72 (£2.06)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	MS-328-3-1-0500 and MS-328-4-1-0500 15mm reed switches	MSM Series

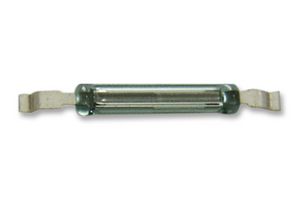

MK23-35-C-2	SW06714 Data Sheet + RoHS	Reed Switch, SMD, SPST-NO, 200V, 1A, 15 - 20AT STANDEXMEDER The MK23-35-C-2 is a miniature surface-mount Reed Switch features flat/bent SMD leads (gull-wing), glass length of 10mm and diameter of 2.1mm. The MK23-35 surface-mount reed switch is a bare glass version of surface-mount reed sensors, offering a more econ... You previously purchased this product. View in Order History	Each (Supplied on Cut Tape)	1+ £1.00 (£1.20) 25+ £0.83 (£1.00)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	Standex Meder Electronics - MK23 Series - Reed Switches
MDSR-4-22-38	SW06686 Data Sheet + RoHS	Reed Switch, SPST-NO, 200V DC, 500mA LITTELFUSE The MDSR-4-22-38 is a SPST Reed Switch with axial contacts. • SPST-NO Contact Configuration You previously purchased this product. View in Order History	Each	1+ £0.72 (£0.86) 25+ £0.66 (£0.79)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	MDSR-4 Series
MK23-35-D-2	SW06715 Data Sheet + RoHS	Reed Switch, SMD, SPST-NO, 200V, 1A, 20AT - 25AT STANDEXMEDER The MK23-35-D-2 is a SPST-NO miniature Surface-mount Reed Switch with 10.5mm glass length and 2.1mm diameter. It is suitable for air conditioning, gas metering, barcode scanner, security panel and water flow gauge switch applications. It has 20W rated powe... You previously purchased this product. View in Order History	Each (Supplied on Cut Tape)	1+ £0.80 (£0.96) 25+ £0.59 (£0.71)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	Standex Meder Electronics - MK23 Series - Reed Switches

MK23-90-C-2	SW06718 + RoHS	Reed Switch, SMD, SPDT, 175V, 500mA, 15AT to 20AT STANDEXMEDER The MK23-90-C-2 is a miniature surface-mount Reed Switch features flat/bent SMD leads (gull-wing), glass length of 14mm and diameter of 2.54mm. The MK23-90 surface-mount reed switch is a bare glass version of surface-mount reed sensors, offering a more eco... You previously purchased this product. View in Order History	Each (Supplied on Cut Tape)	1+ £3.44 (£4.13) 25+ £2.61 (£3.13)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	Standex Meder Electronics - MK23 Series - Reed Switches

RI-80SMD0515-G2	SW06589 Data Sheet RoHS	Reed Switch, SPST-NO, SMD, 175V, 350mA COMUS The RI-80SMD0515-G2 is a single-pole single-throw Ultra-Micro Dry-Reed Switch hermetically sealed in a gas-filled glass envelope with NO contact type. It is having normally open contacts and containing two magnetically actuated reeds. The switch is of the ... You previously purchased this product. View in Order History	Each (Supplied on Cut Tape)	1+ £1.15 (£1.38) 10+ £1.05 (£1.26)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	RI-80 SMD

MK23-66-B-2	SW06716 Data Sheet + RoHS	Reed Switch, SMD, SPST-NO, 200V, 500mA, 15AT STANDEXMEDER The MK23-66-B-2 is a SPST-NO miniature Surface-mount Reed Switch with 14mm glass length and 2.2mm diameter. It is suitable for air conditioning, gas metering, barcode scanner, security panel and water flow gauge switch applications. It has 10W rated power,... You previously purchased this product. View in Order History	Each (Supplied on Cut Tape)	1+ £0.88 (£1.06) 25+ £0.60 (£0.72)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	Standex Meder Electronics - MK23 Series - Reed Switches

MK23-66-C-2	SW06717 Data Sheet + RoHS	Reed Switch, SMD, SPST-NO, 200V, 500mA, 15AT - 20AT STANDEXMEDER The MK23-66-C-2 is a SPST-NO miniature Surface-mount Reed Switch with 14mm glass length and 2.2mm diameter. It is suitable for air conditioning, gas metering, barcode scanner, security panel and water flow gauge switch applications. It has 10W rated power,... You previously purchased this product. View in Order History	Each (Supplied on Cut Tape)	1+ £0.83 (£1.00) 25+ £0.57 (£0.68)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	Standex Meder Electronics - MK23 Series - Reed Switches

MS-332-3-1-0500	SN37109 Data Sheet + RoHS	Proximity Reed Switch, 20mm PIC GMBH • Pull in range: 10 to 25AT • Drop out (minimum): 4T • Test equipment tolerance: +/- 2 AT • Switching frequency (max.): 500Hz • Operate time (max.):1ms • Release time (max): 0.4ms • Vibration (50 to 2000Hz): 20g • Shock (1/2 sin 11ms): 100g • Dimensions: ... You previously purchased this product. View in Order History	Each	1+ £2.81 (£3.37) 10+ £2.65 (£3.18) 25+ £2.35 (£2.82)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	MS-3xx-x-1-0500 Series

RI-80SMD0515-G1	SW06588 Data Sheet RoHS	Reed Switch, SPST-NO, SMD, 175V, 350mA COMUS The RI-80SMD0515-G1 is a single-pole single-throw Ultra-Micro Dry-Reed Switch hermetically sealed in a gas-filled glass envelope with NO contact type. It is having normally open contacts and containing two magnetically actuated reeds. The switch is of the ... You previously purchased this product. View in Order History	Each (Supplied on Cut Tape)	1+ £2.45 (£2.94) 10+ £2.25 (£2.70)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	RI-80 SMD

MS-328-4-1-0500	SN37108 Data Sheet + RoHS	Reed Switch Proximity Sensor, 15mm PIC GMBH • Pull in range: 15 to 30AT • Drop out (minimum): 5T • Test equipment tolerance: +/- 5 AT • Switching frequency (max.): 100Hz • Operate time (max.):0.7ms • Release time (max): 1ms • Vibration (50 to 2000Hz): 30g • Shock (1/2 sin 11ms): 30g • Dimensions: 2... You previously purchased this product. View in Order History	Each	1+ £3.42 (£4.10) 10+ £3.23 (£3.88) 25+ £2.85 (£3.42)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	MS-3xx-x-1-0500 Series

KSK-1A35-1520	SW02761 Data Sheet + RoHS	Reed Switch, 20W STANDEXMEDER The KSK-1A35-1520 is a single-pole single-throw (SPST) miniature Reed Switch with flat leads and NO contact. The reed switch feature glass length of 10.5mm and diameter of 2.1mm. • 10¹²Ω at 100V Insulation resistance • UL approval You previously purchased this product. View in Order History	Each	1+ £0.65 (£0.78) 10+ £0.59 (£0.71)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	-

PSC 175/30-BLK	SW05240 Data Sheet + RoHS	Proximity Reed Switch, CO, 100V, Black COMUS / ASSEMTECH You previously purchased this product. View in Order History	Each	1+ £4.70 (£5.64) 25+ £4.17 (£5.00) 50+ £3.76 (£4.51) 100+ £3.42 (£4.10)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	-

PRA-SA-002	SW05249 Data Sheet + RoHS	Proximity Reed Switch, Al, 120W, NO COMUS / ASSEMTECH • Product Range : Proximity Switch You previously purchased this product. View in Order History	Each	1+ £7.13 (£8.56) 25+ £6.34 (£7.61) 50+ £5.70 (£6.84) 100+ £5.19 (£6.23)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	Proximity Switch

2502-2314-020	SW05232 Data Sheet + RoHS	Reed Switch, NO, 1A COMUS / ASSEMTECH You previously purchased this product. View in Order History	Each	1+ £0.66 (£0.79) 25+ £0.59 (£0.71) 50+ £0.53 (£0.64) 100+ £0.48 (£0.58)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	-

8601-0211-015	SW00757 Data Sheet RoHS	24V Reed Switch COMUS / ASSEMTECH You previously purchased this product. View in Order History	Each	1+ £0.91 (£1.09) 25+ £0.81 (£0.97) 50+ £0.73 (£0.88) 100+ £0.66 (£0.79)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	-

PSA 240/30-BLK	SW05239 Data Sheet RoHS	Proximity Reed Switch, NO, 240V, Black COMUS / ASSEMTECH You previously purchased this product. View in Order History	Each	1+ £3.64 (£4.37) 25+ £3.24 (£3.89) 50+ £2.91 (£3.49) 100+ £2.65 (£3.18)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	-

MDCG-4	SW04716 Data Sheet + RoHS	Reed Switch, NO, 200V, 1.2A, 10W LITTELFUSE • Product Range : MDCG You previously purchased this product. View in Order History	Each	1+ £0.78 (£0.94) 10+ £0.76 (£0.91) 100+ £0.69 (£0.83)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	MDCG

PTA470/30	SN36549 Data Sheet + RoHS	Reed Proximity Switch COMUS / ASSEMTECH The PTA470/30 is a threaded reed switch based Proximity Switch, with PRM suggested magnet. Typical applications include position and limit sensing, linear actuators, security system switch, door switch. • Normally open contact form/style • 400VAC Maximum s... You previously purchased this product. View in Order History	Each	1+ £9.85 (£11.82) 25+ £8.76 (£10.51) 50+ £7.88 (£9.46) 100+ £7.16 (£8.59)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	-

PSC175/30	SN36542 Data Sheet + RoHS	Reed Proximity Switch COMUS / ASSEMTECH The PSC175/30 is a 8mm flange-mount Reed Proximity Switch with blue nylon 66 case, 3 x round 0.14mm² PVC covered grey and insulated brown/white/green cable. This proximity switch is operated by a moving magnet and can be used to detect many directions of m... You previously purchased this product. View in Order History	Each	1+ £4.68 (£5.62) 25+ £4.15 (£4.98) 50+ £3.74 (£4.49) 100+ £3.40 (£4.08)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	PSC 175/30

PRA/240/30	SN36540 Data Sheet + RoHS	Reed Proximity Switch COMUS / ASSEMTECH The PRA/240/30 is a 5mm Reed Proximity Switch with blue nylon 66 case, 2 x round 0.14mm² PVC covered grey and insulated brown/white cable. This proximity switch is operated by a moving magnet and can be used to detect many directions of movement. When the ... You previously purchased this product. View in Order History	Each	1+ £2.63 (£3.16) 25+ £2.34 (£2.81) 50+ £2.10 (£2.52) 100+ £1.91 (£2.29)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	PRA 240/30

PSB175/30	SN36543 Data Sheet + RoHS	Reed Proximity Switch COMUS / ASSEMTECH The PSB175/30 is a 8mm flange-mount Reed Proximity Switch with blue nylon 66 case, 2 x round 0.14mm² PVC covered grey and insulated brown/white cable. This proximity switch is operated by a moving magnet and can be used to detect many directions of movemen... You previously purchased this product. View in Order History	Each	1+ £5.26 (£6.31) 25+ £4.67 (£5.60) 50+ £4.21 (£5.05) 100+ £3.82 (£4.58)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	-

PSA240/30	SN36538 Data Sheet + RoHS	Reed Proximity Switch COMUS / ASSEMTECH The PSA240/30 is a rectangular reed Proximity Switch with nylon 66 case. This sensor is featured with normally open contact. • 200mΩ Maximum contact resistance • -20 to 85°C Operating temperature range You previously purchased this product. View in Order History	Each	1+ £3.17 (£3.80) 25+ £2.82 (£3.38) 50+ £2.53 (£3.04) 100+ £2.30 (£2.76)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	PSA 240/30

59145-4-S-02-A	SN37104 Data Sheet + RoHS	Flange Mount Proximity Reed Sensor Switch, 11mm, 250mA LITTELFUSE The 59145-4-S-02-A is a 11mm flange-mount Reed Sensor with tinned lead terminals and normally closed contact. This sensor case design allows screw down or adhesive mounting and flying leads can exit either left or right hand side of the housing. Operates t... You previously purchased this product. View in Order History	Each	1+ £4.79 (£5.75) 5+ £4.59 (£5.51) 10+ £4.38 (£5.26) 25+ £3.98 (£4.78)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	59145 Series
