Thyristor Diode Modules

: 17 Products Found
Filter Layout:
0 Filter(s) Selected
17 Products Found Please click the 'Apply Filters' button to update results
Min/Max Availability

When the Remember checkbox is selected we will save your latest filter preferences for future searches

Compliance
Min/Max Manufacturer
Min/Max SCR Module Type
Min/Max Peak Repetitive Off-State Voltage, Vdrm
Min/Max Gate Trigger Current Max, Igt
Min/Max Current It av
Min/Max On State RMS Current IT(rms)
Min/Max Peak Non Rep Surge Current Itsm 50Hz
Min/Max Holding Current Max Ih
Min/Max Gate Trigger Voltage Max Vgt
Min/Max Operating Temperature Max
Min/Max Product Range
Packaging

Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.


Compare Selected Compare (0)
Extended Attributes Attributes
Add properties to the table

Select the properties you would like to see added to the columns at the end of the table.

  Manufacturer Part No Order Code Description / Manufacturer
Availability Price For
Price Ex. VAT (Inc. VAT)
Quantity
SCR Module Type Peak Repetitive Off-State Voltage, Vdrm Gate Trigger Current Max, Igt Current It av On State RMS Current IT(rms) Peak Non Rep Surge Current Itsm 50Hz Holding Current Max Ih Gate Trigger Voltage Max Vgt Operating Temperature Max Product Range


Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending Sort Acending Sort Decending
SKT24/12E
SKT24/12E - Thyristor, 32A, 1200V, B-2

SC11506

Thyristor, 32A, 1200V, B-2

SEMIKRON

The SKT24/12E is a stud screw-fit Line Thyristor made of hermetic metal case with glass insulator. • Threaded stud ISO M6 or UNF 1/4-28 • International standard case

You previously purchased this product. View in Order History

Each

1+ £21.99 (£26.39) 10+ £18.99 (£22.79) 100+ £16.99 (£20.39)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Single SCR 1.2kV 100mA 24A 50A 450A 150mA 3V 130°C -
VS-P102W
VS-P102W - Thyristor/Diode Module, 25A

SC11496

Thyristor/Diode Module, 25A

VISHAY

The VS-P102W is a 25A passivated assembled circuit elements Power Module consists of power thyristors and power diodes configured in a single package. The integrated power circuit with its isolating base plate mechanical designs are greatly simplified givi...

You previously purchased this product. View in Order History

Each

1+ £15.48 (£18.58) 10+ £15.32 (£18.38) 25+ £15.21 (£18.25)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Bridge Rectifier, Single Phase - SCR 600V 60mA 25A - 357A 130mA 2V 125°C VS-P100
VS-P402W
VS-P402W - Thyristor/Diode Module, 40A

SC11497

Thyristor/Diode Module, 40A

VISHAY

The VS-P402W is a 6-pin Power Module Thyristor with passivated assembled circuit elements. The VS-P100 series module has integrated power circuits consists of power thyristors and power diodes configured in a single package. With its isolating base plate, ...

You previously purchased this product. View in Order History

Each

1+ £16.05 (£19.26) 10+ £15.95 (£19.14)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Bridge Rectifier, Single Phase - SCR / Diode 600V 60mA 40A - 385A 130mA 2V 125°C -
VS-50RIA20
VS-50RIA20 - Thyristor, 50A, 200V, TO65

SC11503

Thyristor, 50A, 200V, TO65

VISHAY

Medium power phase control thyristor suitable for use in phase control applications in converters, lighting circuits, battery charges, regulated power supplies and temperature and speed control circuit applications. • High current rating • Excellent dynami...

You previously purchased this product. View in Order History

Each

1+ £10.14 (£12.17) 10+ £9.25 (£11.10) 25+ £8.47 (£10.16)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Single SCR 200V 100mA 50A 80A 1.49kA 200mA 2.5V 125°C VS-50RIA
VS-50RIA120
VS-50RIA120 - Thyristor, 50A, 1200V, TO65

SC11502

Thyristor, 50A, 1200V, TO65

VISHAY

The VS-50RIA120 is a 3-pin medium-power Phase-control Thyristor. The VS-50RIA series thyristor has excellent dynamic characteristics, superior surge capability and meets aerospace and other high reliability requirements. • High current rating

You previously purchased this product. View in Order History

Each

1+ £18.43 (£22.12) 10+ £17.81 (£21.37) 25+ £17.24 (£20.69)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Single SCR 1.2kV 100mA 50A 80A 1.43kA 200mA 2.5V 125°C VS-50RIA
VS-P105W
VS-P105W - Thyristor/Diode Module, 25A

SC11494

Thyristor/Diode Module, 25A

VISHAY

The VS-P105W is a 6-pin Power Module Thyristor with passivated assembled circuit elements. The VS-P100 series module has integrated power circuits consists of power thyristors and power diodes configured in a single package. With its isolating base plate, ...

You previously purchased this product. View in Order History

Each

1+ £16.32 (£19.58) 10+ £16.12 (£19.34) 25+ £16.02 (£19.22)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Bridge Rectifier, Single Phase - SCR / Diode 1.2kV 60mA 25A - 357A 130mA 2V 125°C VS-P100
VS-25RIA80
VS-25RIA80 - Thyristor, 25A, 800V, TO48

SC11504

Thyristor, 25A, 800V, TO48

VISHAY

The VS-25RIA80 is a 25A stud version medium power Phase Control Thyristor designed and qualified for industrial and consumer level. • Improved glass passivation for high reliability and exceptional stability at high temperature • High di/dt and dV/dt capab...

You previously purchased this product. View in Order History

Each

1+ £11.26 (£13.51) 10+ £8.39 (£10.07) 50+ £6.59 (£7.91)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Single SCR 800V 60mA 25A 40A 420A 130mA 2V 125°C -
VS-50RIA60
VS-50RIA60 - Thyristor, 50A, 600V, TO65

SC11505

Thyristor, 50A, 600V, TO65

VISHAY

The VS-50RIA60 is a 50A stud version medium power Phase Control Thyristor offers superior surge capabilities. • High current rating • Excellent dynamic characteristics • dV/dt = 1000V/µs option • Single SCR diode variation

You previously purchased this product. View in Order History

Each

1+ £11.15 (£13.38) 10+ £10.03 (£12.04) 25+ £8.91 (£10.69) 50+ £7.80 (£9.36)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Single SCR 600V 100mA 50A 80A 1.43kA 200mA 2.5V 125°C VS-50RIA
SKKT 106/16 E
SKKT 106/16 E - Thyristor Module, Series Connected, 106A, 1.6kV

SC17033

Thyristor Module, Series Connected, 106A, 1.6kV

SEMIKRON

The SKKT 106/16 E is a 7-pin 2-switch Thyristor Module has hard soldered joints for high reliability and heat transfer through aluminium oxide ceramic isolated metal baseplate.

You previously purchased this product. View in Order History

Each

1+ £16.50 (£19.80) 3+ £15.54 (£18.65)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Series Connected - SCRs 1.6kV 150mA 106A 180A 22.5kA 250mA 3V 130°C -
VS-P405W
VS-P405W - Thyristor Bridge Rectifier Module, Single Phase, 40A, 1200V

SC17034

Thyristor Bridge Rectifier Module, Single Phase, 40A, 1200V

VISHAY

You previously purchased this product. View in Order History

Each

1+ £31.50 (£37.80) 3+ £25.00 (£30.00)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
- - - - - - - - - -

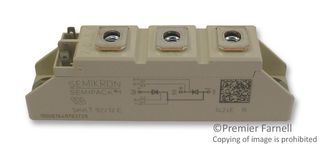

SKKT 92/12 E
SKKT 92/12 E - Thyristor Diode Module, 95A, 1.2kV

SC17036

Thyristor Diode Module, 95A, 1.2kV

SEMIKRON

The SKKT 92/12 E is a 7-pin 2-switch Thyristor Module has hard soldered joints for high reliability and heat transfer through aluminium oxide ceramic isolated metal baseplate.

You previously purchased this product. View in Order History

Each

1+ £44.75 (£53.70) 3+ £40.85 (£49.02)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Series Connected - SCRs 1.2kV 150mA 95A 150A 2kA 250mA 3V 125°C -
SKKT 72/16 E
SKKT 72/16 E - Thyristor Diode Module, 70A, 1.6kV

SC17039

Thyristor Diode Module, 70A, 1.6kV

SEMIKRON

The SKKT 72/16 E is a SEMIPACK®1 Thyristor/Diode Module with hard soldered joints for high reliability. • Heat transfer through aluminium oxide ceramic isolated metal baseplate • UL recognized E63532

You previously purchased this product. View in Order History

Each

1+ £33.95 (£40.74) 3+ £32.75 (£39.30)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Series Connected - SCRs 1.6kV 150mA 70A 125A 1.6kA 250mA 3V 125°C -
SKKT 162/12 E
SKKT 162/12 E - Thyristor Module, 156A, 1.2kV

SC17038

Thyristor Module, 156A, 1.2kV

SEMIKRON

The SKKT 162/12 E is a Thyristor/Diode Module with hard soldered joints for high reliability. The heat transfers through aluminium oxide ceramic isolated baseplate. It is ideal for AC motor soft starters, temperature control and professional light dimming....

You previously purchased this product. View in Order History

Each

1+ £37.50 (£45.00) 3+ £36.08 (£43.30)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Series Connected - SCRs 1.2kV 150mA 156A 250A 5.4kA 400mA 2V 125°C -
MCC95-12IO8B
MCC95-12IO8B - Thyristor Module, 116A, 1.2kV

SC17037

Thyristor Module, 116A, 1.2kV

IXYS SEMICONDUCTOR

The MCC95-12IO8B from IXYS Semiconductor is a 7 Pin 2 Switch Thyristor Module.

You previously purchased this product. View in Order History

Each

1+ £22.28 (£26.74) 3+ £19.79 (£23.75)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Series Connected - SCRs 1.2kV 150mA 116A 182A 2.25kA 200mA 2.5V 100°C -
SKKH 92/16E
SKKH 92/16E - Thyristor / Diode Module, Series Connected, 95A, 1.6kV

SC17035

Thyristor / Diode Module, Series Connected, 95A, 1.6kV

SEMIKRON

The SKKH 92/16E is a 5-pin 2-switch Thyristor Module has hard soldered joints for high reliability and heat transfer through aluminium oxide ceramic isolated metal baseplate.

You previously purchased this product. View in Order History

Each

1+ £35.00 (£42.00) 3+ £32.75 (£39.30)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Series Connected - SCR / Diode 1.6kV 150mA 95A 150A 2kA 250mA 3V 125°C -
MCC95-16IO1B
MCC95-16IO1B - Thyristor Diode Module, 116A, 1600V

SC17041

Thyristor Diode Module, 116A, 1600V

IXYS SEMICONDUCTOR

The MCC95-16IO1B is a 3-pin Dual Thyristor Module with planar passivated chip. Long-term stability, direct copper bonded Al2O3-ceramic and thyristor for line frequency. Soldering pins for PCB mounting. DCB ceramic base plate. • 1700V Maximum non-repetitive...

You previously purchased this product. View in Order History

Each

1+ £25.29 (£30.35) 3+ £22.97 (£27.56)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Series Connected - SCRs 1.6kV 200mA 116A 180A 2.25kA 200mA 2.5V 125°C -
MCC162-16IO1
MCC162-16IO1 - Thyristor Module, 181A, 1.6kV

SC17040


New product
Data Sheet
+
RoHS

Thyristor Module, 181A, 1.6kV

IXYS SEMICONDUCTOR

The MCC162-16IO1 is a 7-pin Phase-leg Thyristor Module for line frequencies. The thyristor design provides the electrical isolation between the base plate of the module and the parts subject to voltage conventional multilayer module construction by the DCB...

You previously purchased this product. View in Order History

Each

1+ £53.89 (£64.67) 3+ £52.00 (£62.40)

Restricted Item

Minimum order of 1 items Multiples of 1 only Please enter a valid quantity

Add
Min: 1 Mult: 1
Series Connected - SCRs 1.6kV 150mA 181A 300A 6kA 200mA 2.5V 100°C -
