Breakout Module based on FT200XD USB to I2C Interface IC - Wire Ended connection -

UMFT200XD-WE

UMFT200XD-WE - Breakout Module based on FT200XD USB to I2C Interface IC - Wire Ended connection

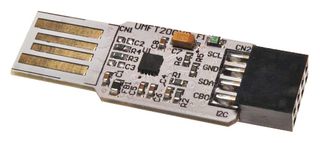

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
FTDI FTDI
Manufacturer Part No:
UMFT200XD-WE
Order Code:
SC14096
Technical Datasheet:
UMFT200XD-WE   Datasheet
See all Technical Docs

Product Overview

The UMFT200XD-WE is a Breakout Board to convert USB to I²C with four control bus lines. This module do not have USB connector, instead the module plug directly into the USB host connector and the pads of the PCB makes electrical contact with the electrical contacts of the USB connector. The I²C interface operates at 3.3V voltage levels, however all I/Os are 5V tolerant.
  • 3.3V Power out limited to 50mA and 5V with as safety fuse
  • I2C signals available via 8, 6" flying leads connected to the PCB pads
  • Royalty free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases
  • Configurable CBUS I/O pin
  • Device supplied preprogrammed with unique USB serial number
  • Supports bus powered, self powered and high power bus powered USB configurations
  • Integrated power on reset circuit
  • Low USB bandwidth consumption
  • UHCI/OHCI/EHCI host controller compatible
  • USB 2.0 full speed compatible

Applications

Test & Measurement, Industrial, Wireless, Industrial, Consumer Electronics, Sensing & Instrumentation

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information


:
Interface Module

:
USB to I2C

:
FTDI

:
FT200XD

:
-

:
Dev Board FT200XD
