20MHz 8bit AVR Microcontroller in DIP-28 Package, 20MHz, 1kB, 32kB -

ATMEGA328-PU

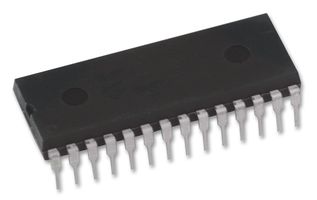

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
ATMEGA328-PU
Order Code:
SC19178
Product Range
AVR ATmega Family ATmega328 Series Microcontrollers
Technical Datasheet:
ATMEGA328-PU   Datasheet
See all Technical Docs

Product Range Selector (AVR ATmega Family ATmega328 Series Microcontrollers)

See all from this product range

Product Overview

The ATMEGA328-PU is a low power CMOS 8 bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA328-PU achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
  • 131 powerful instructions, most single clock cycle execution
  • 32 x 8 general purpose working registers
  • Fully static operation
  • Up to 20MIPS throughput at 20MHz
  • On-chip 2-cycle multiplier
  • Write/erase cycles: 10,000 flash/100,000 EEPROM
  • Optional boot code section with independent lock bits
  • In system programming by on chip boot program
  • True read while write operation
  • Programming lock for software security
  • Atmel® QTouch® library support
  • Capacitive touch buttons, sliders and wheels
  • QTouch and QMatrix® acquisition
  • Up to 64 sense channels
  • Two 8bit timer/counters with separate prescaler and compare mode
  • One 16 bit timer/counter with separate prescaler, compare mode, and capture mode
  • Real time counter with separate oscillator
  • Six PWM channels
  • Programmable serial USART
  • Serial peripheral interface (SPI)
  • Byte oriented 2 wire serial interface
  • Programmable watchdog timer with separate on chip oscillator
  • On chip analogue comparator
  • Interrupt and wake up on pin change
  • Power on reset and programmable brown out detection

Footnotes

New IC marking code is implemented, instead ATMEGA328 -PU used ATMEGA328 -U.

Product Information


:
AVR ATmega Family ATmega328 Series Microcontrollers

:
AVR

:
20MHz

:
32KB

:
28Pins

:
DIP

:
23I/O's

:
I2C, SPI, UART

:
2KB

:
6Channels

:
10Bit

:
1.8V

:
5.5V

:
-40°C

:
85°C

:
Through Hole

:
AVR ATmega

:
ATmega328

:
-

:
-
