Raspberry Pi 4 Model B 2GB Board -

RPI4-MODBP-2GB

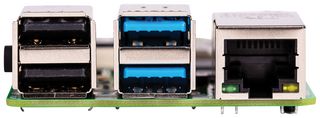

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
RPI4-MODBP-2GB
Order Code:
SC15184
Also Known As:
GTIN UPC EAN: 765756931175

Product Range Selector (Raspberry Pi 4 Model B)

See all from this product range

Product Overview

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems. This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, 2GB of RAM, dual-band 2.4/5.0GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0 and PoE capability (via a separate PoE HAT add-on). The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
  • Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • 2GB LPDDR4 SDRAM
  • 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE
  • True Gigabit Ethernet
  • 2x USB 3.0 ports, 2x USB 2.0 Ports
  • Fully backwards compatible 40-pin GPIO header
  • 2x Micro HDMI ports supporting up to 4K 60Hz video resolution
  • 2-lane MIPI DSI/CSI ports for camera and display
  • 4-pole stereo audio and composite video port
  • MicroSD card slot for loading operating system and data storage
  • Requires 5.1V, 3A power via USB-C or GPIO
  • PoE (Power over Ethernet) enabled (requires PoE HAT)

Applications

Embedded Design & Development, Hobby & Education, IoT (Internet of Things), Communications & Networking

Contents

Pi 4 Model B Board only

Product Information


:
Broadcom

:
Broadcom BCM2711

:
BCM2xxx

:
Cortex-A72 (ARM v8) 64-bit

:
ARM

:
4Cores

:
Cortex-A72

:
VideoCore VI

:
1.5GHz

:
BCM2711

:
Raspberry Pi 4 Model B Board

:
2GB

:
USB 2.0 x 1, USB 3.0 x 2, USB-C OTG x 2

:
Gigabit Ethernet

:
micro HDMI x 2

:
3.5mm Audio Jack

:
40Pins

:
Supported

:
microSD

:
Supported

:
2.4GHz and 5GHz 802.11 b/g/n/ac

:
Bluetooth 5.0 BLE

:
USB Type C

:
Supported

:
Raspberry Pi 4 Model B
