Digital Bench Multimeter -

1908P

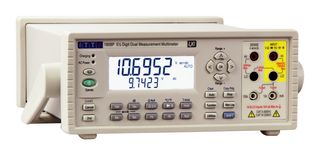

1908P - Digital Bench Multimeter
1908P - Digital Bench Multimeter

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
1908P
Order Code:
IN07946
Product Range
1908 Series
Technical Datasheet:
1908P   Datasheet
See all Technical Docs

Product Range Selector (1908 Series)

See all from this product range

Product Overview

The 1908P from AIM-TTI Instruments is a dual measurement bench multimeter with optional RS232, LXI/LAN interfaces. The 1908P has both a main display and a secondary display. The two displays can be used for a variety of purposes such as to display a measurement along with the selected range (e.g. 100VDC), to display a measurement in two different units (e.g. AC volts and dBm), to display the result of a calculated function (e.g. value and % deviation), to measure and display two parameters of one signal (e.g. AC and DC volts), to measure and display two different signals (e.g. AC volts and DC current). It features continuity and diode test, automatic or manual ranging, linear scaling with offset, dB measurements, limits comparison, percentage deviation (%), min-max storage, power measurement in watts or VA, automatic data logging and external triggering.
  • Affordable 5.5 digit high performance bench/portable multimeter
  • Dual display and dual measurement capability
  • Mains power or internal rechargeable batteries for true portability
  • High accuracy and resolution of 0.02%, 1µV, 1nA, 1mohm
  • True RMS AC, frequency, capacitance and temperature measurements
  • Wide range of computing functions e.g. Ax + B
  • Software for remote control and logging included
  • Complies with EN61010-1 2010 and EN61010-2-030 201, EN61010-2-033 and EN61326
  • Dimension is 250mm x 97mm x 295mm

Applications

Test & Measurement, Sensing & Instrumentation

Footnotes

GPIB not included.

Product Information


:
5.5

:
GPIB, LAN / LXI, RS232, USB

:
10A

:
750V

:
1kohm

:
1908 Series

:
10A

:
1kV

:
3 Years

:
AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance, Temperature

:
-
