NTC Thermistor. 5k Ohm, 3988k -

B57861S0502F040

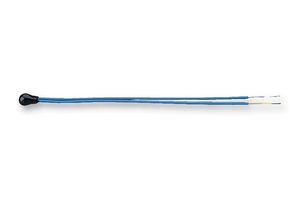

B57861S0502F040 - NTC Thermistor. 5k Ohm, 3988k

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
EPCOS EPCOS
Manufacturer Part No:
B57861S0502F040
Order Code:
SN37118
Product Range
B57861S
Technical Datasheet:
B57861S0502F040   Datasheet
See all Technical Docs

Product Range Selector (B57861S)

See all from this product range

Product Overview

The B57861S0502F040 is a 2-pin NTC Thermistor with epoxy resin encapsulation, PTFE-insulated leads of silver plated nickel wire (30AWG) and miniature sensors comes with bendable wires. This B57861S series through hole mounting thermistor features high measuring accuracy and short response time. A lead (wire) may be bent at a minimum distance of twice the wire's diameter plus 4mm from the component head or housing. When bending ensure the wire is mechanically relieved at the component head or housing. Twisting (torsion) by 180° of a lead bent by 90° is permissible at 6mm from the bottom of the thermistor body. Soldering can use resin-type flux or non-activated flux. The soldering due to insufficient preheating may cause ceramic cracks. Suitable for temperature measurement and heating systems.
  • Bending radius should be at least 0.75mm
  • Fast response time
  • 60mW Maximum power

Applications

Test & Measurement, HVAC, Industrial, Automotive

Footnotes

Do not store thermistors where they are exposed to heat or direct sunlight. Avoid contamination of thermistor surface during storage, handling and processing. Do not touch components with bare hands.

Warnings

Do not store thermistors where they are exposed to heat or direct sunlight. Avoid contamination of thermistor surface during storage, handling and processing. Do not touch components with bare hands.

Product Information


:
NTC

:
5kohm

:
± 1%

:
Through Hole

:
B57861S

:
Free Hanging

:
3988K

:
Wire Leaded

:
± 1%

:
-

:
-

:
-

:
-

:
45mm

:
-55°C

:
155°C

:
AEC-Q200

:
AEC-Q200
