ARM Core Board based on the SAM9G35 Microcontroller -

MBC-SAM9G35

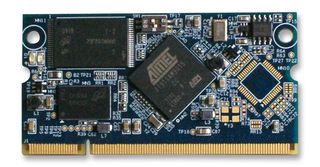

MBC-SAM9G35 - ARM Core Board based on the SAM9G35 Microcontroller

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
EMBEST EMBEST
Manufacturer Part No:
MBC-SAM9G35
Order Code:
SC13183
Technical Datasheet:
MBC-SAM9G35   Datasheet
See all Technical Docs

Product Overview

The MBC-SAM9G35 is an ARM embedded core board which integrate the ATMEL ARM926EJ-S-based processor AT91SAM9G35, operating at 400MHz frequency and can support WinCE and Linux. Based on the ARM926EJ-S processor and running at 400MHz, the SAM9G35 integrates advanced user interface and high speed communication peripherals. It features an advanced graphics LCD controller with 4 layer overlay offering picture in picture, alpha blending, scaling, rotation and colour conversion and a 10bit ADC that supports 4 or 5 wire resistive touch screen panels. Multiple communication interfaces include a soft modem supporting exclusively the Conexant SmartDAA line driver, USB host and device and FS USB host with on chip transceivers, 10/100 Ethernet MAC, two HS SDCard/SDIO/MMC interfaces, USARTs, SPIs, I2S and TWIs.
  • ARM926EJ-S ARM Thumb processor running at up to 400MHz at 1.0V +/- 10%
  • 16KB data cache, 16KB instruction cache, memory management unit
  • 64KB internal ROM embedding bootstrap routine: boot on nandflash, SDCard, data flash
  • Programmable order
  • 32KB internal SRAM, single cycle access at system speed
  • Boot mode select option, remap command
  • Selectable 32768Hz low power oscillator and 12MHz oscillator
  • Shut down controller with four 32bit battery backup registers
  • 3 channel 32bit timer/counters
  • Four 32bit parallel input/output controllers

Applications

Industrial, Automation & Process Control, Consumer Electronics, Security, Medical

Product Information


:
Atmel

:
ARM

:
ARM9

:
SAM9G

:
AT91SAM9xxx

:
ATMEL MBS-SAM9G35 SBC Board

:
Core Board MBC-SAM9G35

:
-
