LCD Display Module, 16 x 2, White on Blue, 5V, Parallel, English, Japanese, Transmissive -

MC21605C6W-BNMLW-V2

New
MC21605C6W-BNMLW-V2 - LCD Display Module, 16 x 2, White on Blue, 5V, Parallel, English, Japanese, Transmissive

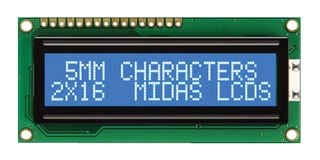

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MC21605C6W-BNMLW-V2
Order Code:
SC19780
Product Range
-
See all Technical Docs

Product Overview

The MC21605C6W-BNMLW-V2 from Midas is a chip on board LCD alphanumeric module. The overall size of module is 85mm x 36mm x 13.5mm (W x H x D), character size is 2.95mm x 4.35mm (W x H), character pitch is 0.51mm x 0.52mm (W x H).
  • Typical input voltage is 5V
  • Supply current is 1.4mA at Vdd = 5V
  • 16 character number per line & 2 character line
  • Character height is 5mm
  • Blue transmissive STN
  • LED white backlight
  • 6 "o" clock viewing direction
  • SPLC780D controller
  • Operating temperature range from -20°C to 70°C
  • Display duty 1/16, Driving bias 1/5
  • White LED backlight
  • -20 to +70°C wide operating temperature range
  • 16 way through hole SIL (top left) connection, 2.54mm pitch

Applications

Imaging, Video & Vision

Product Information


:
16 x 2

:
White on Blue

:
5V

:
Parallel

:
English, Japanese

:
Transmissive

:
4.35mm

:
BSTN

:
80mm x 36mm

:
-20°C

:
70°C

:
COB

:
White

:
-
