FFC / FPC Board Connector, 0.5 mm, 54 Contacts, Receptacle, Easy-On 51296 Series, Surface Mount -

51296-5494

New
51296-5494 - FFC / FPC Board Connector, 0.5 mm, 54 Contacts, Receptacle, Easy-On 51296 Series, Surface Mount

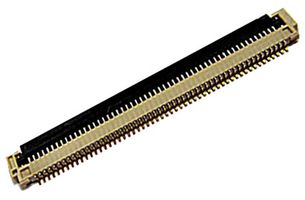

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
51296-5494
Order Code:
CN26138
Product Range
Easy-On 51296 Series
Also Known As:
GTIN UPC EAN: 822350198332
Technical Datasheet:
51296-5494   Datasheet
See all Technical Docs

Product Range Selector (Easy-On 51296 Series)

See all from this product range

Product Overview

The 51296-5494 is a 54-circuit 1-row Easy-On™ type FFC/FPC right angle connector, 51296 series, with bottom contact style, gold-plated phosphor bronze contacts and surface mount termination. The FFC/FPC connector is available with actuator, which are pre-assembled covers that secure the connection between the FFC/FPC and the connector terminals.
  • Narrower width and shorter length dimensions provides additional space savings
  • Movable terminals - Ensures more secure contact retention
  • Dual-contact design
  • Housing designs highlight FPC tabs assures proper cable seating
  • Actuators reinforcements for large circuit sizes
  • Beige/black colour
  • Current rating per contact is 0.5A
  • Voltage rating is 50V AC/DC
  • Operating temperature range from -40 to 85°C

Applications

Automotive, Consumer Electronics, Data , Computing, Industrial, Medical, Portable Devices

Product Information


:
0.5mm

:
54Contacts

:
Receptacle

:
Easy-On 51296 Series

:
Surface Mount

:
Bottom

:
1 Row

:
Gold Plated Contacts

:
Phosphor Bronze

:
0.3mm
