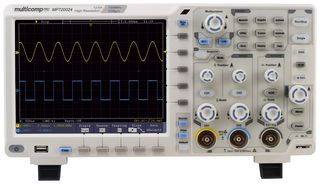

2-Channel Digital Storage Oscilloscope, 100MHz -

MP720024 EU-UK

MP720024 EU-UK - 2-Channel Digital Storage Oscilloscope, 100MHz
MP720024 EU-UK - 2-Channel Digital Storage Oscilloscope, 100MHz
MP720024 EU-UK - 2-Channel Digital Storage Oscilloscope, 100MHz
MP720024 EU-UK - 2-Channel Digital Storage Oscilloscope, 100MHz

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MP720024 EU-UK
Order Code:
IN08397
Technical Datasheet:
MP720024 EU-UK   Datasheet
See all Technical Docs

Product Range Selector (Eco)

See all from this product range

Product Overview

The Multicomp Pro MP720024 is a 12 bit, economical 100MHz digital oscilloscope. Featuring a 12 bit high vertical resolution 8" large TFT display, 20M record lengths, 55,000 wfms/s waveform refresh rates, multi-trigger and bus decoding functions and SCPI/LabVIEW support.
  • 12 bits high vertical resolution
  • 8" large clear TFT display (800x600)
  • Ultra-thin body design, less space accommodation
  • Low background noise - vertical sensitivity of 1mV/div - 10V/div
  • Standard SPI/I2C/RS232/CAN decoding functions
  • SCPI and LabVIEW support
  • Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN and AUX and VGA port.
  • Horizontal scale (s/div) - 2ns/div - 1000s/div, step by 1-2-5
  • Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
  • Dimensions - 340 x 177 x 90mm
  • Device weight - 2.6kg

Contents

Digital Storage Oscilloscope, 2x Probes, Probe Manual, Accessories Bag, USB Type B Cable, Operating Instructions, CD-ROM, UK & EU Power Cords

Footnotes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.

Product Information


:
Eco

:
2 Analogue, 1 Ext Trigger

:
100MHz

:
1GSPS

:
20 Mpts

:
3.5ns

:
LCD Colour

:
DSO, Power Cord, USB Cable, CD Rom, Probes, Probe Adjust Tool, Optional Acc: Soft Bag

:
3 Years

:
EU, UK
