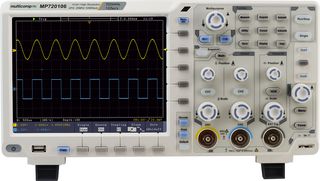

Digital Storage Oscilloscope, 2-Channel, 200MHz -
MP720106
- Manufacturer:
- MULTICOMP PRO MULTICOMP PRO
- Manufacturer Part No:
- MP720106
- Order Code:
- IN08690
- Technical Datasheet:
- MP720106 Datasheet
Product Overview
- Ultra-thin design, less space accommodation
- Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX
- 8" 800x600 high resolution LCD touch-screen for a more user-friendly operating experience
- 14-bit high resolution ADC, restoring the waveform detail fully
- Wi-Fi module supported
- multimeter with data-logging function
- Functions as dual-channel 25MHz arbitrary waveform generator
- 40M record length
- Max 75,000 wfms/s waveform refresh rate
- Low background noise, vertical sensitivity 1mV/div - 10V/div
- Multi-trigger and bus decoding function
- VGA port - better solution for video expansion and teaching demonstrations
- SCPI and LabVIEW supported
- 1ns/div – 1000 horizontal scale (s/div), step by 1-2-5
- DC, AC and GND input coupling
- Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
- Auto, normal and single trigger modes
- Dimensions (W x H x D) - 340 x 177 x 90mm
- Device Weight – 2.6kg
Contents
Digital Storage Oscilloscope, EU & UK Mains Leads, 2x Probes, Probe Adjust Tool, USB Cable, Operating Instructions, CD-ROM
Footnotes
Product Information
- :
- -
- :
- 2+1 Channel
- :
- 200MHz
- :
- 1GSPS
- :
- 40 Mpts
- :
- 1.7ns
- :
- LCD Colour
- :
- Digital Storage Oscilloscope, EU & UK Mains Leads, 2x Probes, Probe Adjust Tool, USB Cable, Operating Instructions, CD-ROM
- :
- 3 Years
- :
- EU, UK
