Potentiometer, 1W Single 10K -

14910F0GJSX10103KA

14910F0GJSX10103KA - Potentiometer, 1W Single 10K

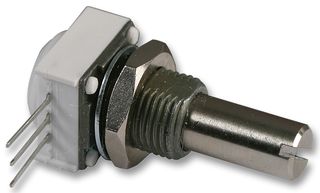

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
VISHAY VISHAY
Manufacturer Part No:
14910F0GJSX10103KA
Order Code:
RE04598
Product Range
149 Series
See all Technical Docs

Product Range Selector (149 Series)

See all from this product range

Product Overview

The 14910F0GJSX10103KA is a 1/2-inch Conductive Plastic and Cermet Potentiometer with robust construction and up to three section PC support plates. Power rating of 1W, temperature coefficient of ±150ppm/°C and screwdriver slot adjustment.
  • High rotational life (50000 cycles)
  • Rotary switches and solder lugs terminals available
  • Low temperature coefficient (±150ppm/°C)
  • 750V Dielectric withstanding voltage
  • Rotation-270 ±10° without rotary switch, 240 ±10° with rotary switch
  • IP64 Protection rating (sealing)
  • 10000MΩ Insulation resistance

Product Information


:
10kohm

:
1Turns

:
Linear

:
1W

:
± 10%

:
149 Series

:
-

:
6.35mm

:
1

:
Screwdriver Slot

:
22.22mm

:
± 150ppm/°C

:
-

:
Cermet

:
PC Pin

:
-

:
31.1mm

:
12.5mm

:
13.1mm

:
-40°C

:
150°C

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Available for back order

More stock available to supplier lead times which is approximately 11/08/25

???PF_PDP_RSP_SUP???

Notify me when back in stock

£10.67 ( £12.80  Inc. VAT)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
  • 1+
  • 10+
Quantity Price Your Price (Inc. VAT)


1+ £10.67 (£12.80)
Promotional price
Contract Price
Web only price
Web only contract price
  ( )
10+ £9.60 (£11.52)
