Unamplified Photo Diodes

Introducing our collection of Unamplified Photo Diodes, available exclusively at CPC. These cutting-edge diodes have been carefully selected from industry-leading brands to provide you with the best performance and reliability. Designed to capture even the faintest of light signals, our Unamplified Photo Diodes are perfect for a wide range of applications. With their compact size and easy installation, these diodes offer convenience without compromising on quality. Whether you're working on a DIY project or a professional application, our Unamplified Photo Diodes deliver exceptional results every time. Order your Unamplified Photo Diodes today from CPC and experience the difference for yourself. Don't miss out on our competitive prices and exceptional customer service. Trust in CPC for all your photo diode needs.

Open Filters

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Extended Attributes Attributes

Add properties to the table

Select the properties you would like to see added to the columns at the end of the table.

Select All

No. of Pins

Diode Case Style

Wavelength of Peak Sensitivity

Angle of Half Sensitivity ±

Dark Current

Operating Temperature Min

Operating Temperature Max

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price Ex. VAT (Inc. VAT)	Quantity	No. of Pins	Diode Case Style	Wavelength of Peak Sensitivity	Angle of Half Sensitivity ±	Dark Current	Operating Temperature Min	Operating Temperature Max
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending
SFH213	SC07707 Data Sheet + RoHS	Photodiode OSRAM The SFH213 is a 5mm silicon PIN Photodiode with very short switching time. It features 400 to 1100nm wavelength, 10° angle of half sensitivity and suitable to use for high speed photo interrupters. • 5ns Typical Short Switching Time • 5mm LED Plastic Packa... You previously purchased this product. View in Order History	Each	1+ £0.49 (£0.59) 10+ £0.45 (£0.54)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	T-1 3/4 (5mm)	850nm	10°	1000pA	-40°C	100°C
BPW34	SC07697 Data Sheet + RoHS	Photodiode VISHAY The BPW34 is a silicon PIN Photodiode with high speed and high radiant sensitivity in miniature, flat, top view, clear plastic package. It is sensitive to visible and near infrared radiation. • 7.5mm² Radiant Sensitive Area • High Photo Sensitivity • High ... You previously purchased this product. View in Order History	Each	1+ £0.91 (£1.09) 10+ £0.68 (£0.82) 100+ £0.59 (£0.71) 250+ £0.51 (£0.61)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	DIP	900nm	65°	2nA	-40°C	100°C
BPW34S	SC07700 Data Sheet + RoHS	Photodiode OSRAM The BPW34S is a SMT silicon PIN Photodiode with high density package. It especially suitable for application from 400nm to 110nm wavelength and 60° of half angle. • Suitable for Reflow Soldering • 20ns Typical Short Switching Time • DIL Plastic Package wit... You previously purchased this product. View in Order History	Each	1+ £0.68 (£0.82) 10+ £0.57 (£0.68) 100+ £0.46 (£0.55) 250+ £0.41 (£0.49)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	SMD	850nm	60°	2000pA	-40°C	100°C

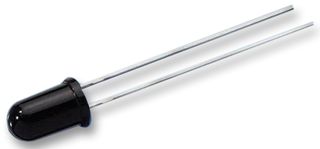

SFH203-FA	SC07705 Data Sheet + RoHS	Photodiode, IR Filtered OSRAM The SFH203-FA is a 5mm silicon PIN Photodiode with very short switching time. It features 750 to 1100nm wavelength, 20° angle of half sensitivity and suitable to use for high speed photo interrupters. • 5ns Typical Short Switching Time • 5mm LED Plastic Pa... You previously purchased this product. View in Order History	Each	1+ £0.52 (£0.62) 10+ £0.41 (£0.49) 100+ £0.38 (£0.46) 250+ £0.33 (£0.40)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	T-1 3/4 (5mm)	900nm	20°	1000pA	-40°C	100°C
BPW21R	SC12384 Data Sheet + RoHS	Photodiode, Colour Corrected VISHAY The BPW21R from Vishay is a leaded silicon photodiode in TO-5 package. The device is equipped with a flat glass window, built-in colour correction filter giving an approximation to the spectral response of human eye. This device is made of planar silicon P... You previously purchased this product. View in Order History	Each	1+ £8.70 (£10.44) 10+ £7.52 (£9.02) 50+ £6.87 (£8.24)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	TO-5	565nm	50°	2000pA	-40°C	125°C

BPW34FS	SC07701 Data Sheet + RoHS	Photodiode, IR Filtered OSRAM The BPW34FS is a Silicon PIN Photodiode with daylight blocking filter. It has a radiant sensitive area of 2.65x2.65mm² and short switching time. It is suitable for reflow soldering. It is suitable for applications from 780 to 1100nm. You previously purchased this product. View in Order History	Each (Supplied on Cut Tape)	1+ £0.71 (£0.85) 10+ £0.54 (£0.65) 100+ £0.43 (£0.52)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	SMD	950nm	60°	2000pA	-40°C	100°C

SFH 203 P	SC15674 Data Sheet + RoHS	Photo Diode, 75° Half Sensitivity, 1nA Dark Current, 850nm, T-1 3/4 (5mm) 2 Pins AMS OSRAM GROUP SFH 203 P is a radial T1 3/4 silicon PIN photodiode LED. Applications include access control and security, appliances and tools. • ESD: 2kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) • Short switching time (typ. 5ns) • 5mm LED plastic package • 9.5µA ty... You previously purchased this product. View in Order History	Each	1+ £0.56 (£0.67) 10+ £0.51 (£0.61) 100+ £0.43 (£0.52)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	T-1 3/4 (5mm)	850nm	75°	1000pA	-40°C	100°C

BPW46	SC20936 Data Sheet + RoHS	Photo Diode, Non Amplified, 900 nm, Radial Leaded, 65 Degree VISHAY • No. of Pins : 2Pins • Diode Case Style : Radial Leaded • Wavelength of Peak Sensitivity : 900nm • Angle of Half Sensitivity ± : 65° • Dark Current : 2000pA • Operating Temperature Min : -40°C • Operating Temperature Max : 100°C You previously purchased this product. View in Order History	Each	1+ £0.85 (£1.02) 10+ £0.53 (£0.64) 50+ £0.43 (£0.52)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	Radial Leaded	900nm	65°	2000pA	-40°C	100°C

SFH 213 FA	SC20649 Data Sheet + RoHS	Photo Diode, 1nA Dark Current, 900nm, T-1 3/4 (5mm)-2 Pins AMS OSRAM GROUP • No. of Pins : 2Pins • Diode Case Style : T-1 3/4 (5mm) • Wavelength of Peak Sensitivity : 900nm • Angle of Half Sensitivity ± : 10° • Dark Current : 1000pA • Operating Temperature Min : -40°C • Operating Temperature Max : 100°C You previously purchased this product. View in Order History	Each	5+ £0.47 (£0.56) 10+ £0.30 (£0.36) 50+ £0.25 (£0.30)	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	2Pins	T-1 3/4 (5mm)	900nm	10°	1000pA	-40°C	100°C

SFH 203	SC20648 Data Sheet + RoHS	Silicon PIN Photodiode, 1nA Dark Current, 850nm, T-1 3/4, 5mm AMS OSRAM GROUP SFH 203 is a radial T1 3/4 silicon PIN photodiode LED. Applications include access control and security, appliances and tools. • 5mm LED plastic clear epoxy package • ESD: 2kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) • Short switching time (typ. 5ns) ... You previously purchased this product. View in Order History	Each	5+ £0.40 (£0.48) 10+ £0.32 (£0.38) 50+ £0.28 (£0.34)	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	2Pins	T-1 3/4 (5mm)	850nm	20°	1000pA	-40°C	100°C

BPV10NF	SC20935 + RoHS	Photodiode, 20 Degree, 1 nA, 940 nm, T-1 3/4 (5mm) VISHAY The BPV10NF is a black Silicon PIN Photodiode with high speed and high radiant sensitivity. Filter bandwidth is matched with 870 to 950nm IR emitters. • Leads with stand-off • High radiant sensitivity • Fast response times • ±20° Angle of half sensitivity You previously purchased this product. View in Order History	Each	1+ £0.85 (£1.02) 10+ £0.56 (£0.67) 50+ £0.44 (£0.53)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	T-1 3/4 (5mm)	940nm	20°	1000pA	-40°C	100°C

BPW41N	SC07702 Data Sheet + RoHS	Photodiode, IR Filtered VISHAY The BPW41N is a Silicon PIN Photodiode with high speed and high radiant sensitivity in a black, side view plastic package with daylight blocking filter. Filter bandwidth is matched with 900 to 950nm IR emitters. • High radiant sensitivity • Fast response t... You previously purchased this product. View in Order History	Each	1+ £0.52 (£0.62) 10+ £0.46 (£0.55) 100+ £0.42 (£0.50) 250+ £0.41 (£0.49)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2Pins	Radial Leaded	950nm	65°	2000pA	-40°C	100°C
