MOSFET Solid State Relays
: 11 Products FoundContract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.
MOSFET Solid State Relays
Introducing MOSFET Solid State Relays, the reliable and efficient solution for your electrical needs. With a wide range of options available at CPC, you can find the perfect MOSFET Solid State Relay for your specific requirements. These industry-leading relays offer superior performance and durability, ensuring long-lasting functionality and peace of mind. Whether you need to control high voltage or high current applications, these relays deliver exceptional precision and reliability. Plus, with our competitive prices and convenient ordering process, you can get the best value for your money. Don't settle for anything less than the best - choose MOSFET Solid State Relays from CPC today and experience the difference.
Solid State Relays |
Select the properties you would like to see added to the columns at the end of the table.
Manufacturer Part No | Order Code | Description / Manufacturer | Availability | Price For |
Price Ex. VAT (Inc. VAT)
|
Quantity | Contact Form | Contact Configuration | Load Type | Load Voltage Max | Load Current | MOSFET Relay Package Style | Relay Mounting | No. of Pins | Relay Terminals | Forward Current If | On State Resistance Max | Isolation Voltage | Operating Temperature Min | I/O Capacitance Typ | Operating Temperature Max | Off State Leakage Current Max | Product Range | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | Sort Acending Sort Decending | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASSR-1228-002E
![]() |
SW03790 |
Solid State Relay (SSR), 0.2A, 60V, DIP8 BROADCOM The ASSR-1228-002E is a Standard Solid State Relay with DPST-NO contacts and through hole terminals. This ASSR-12-series 2-form-A relay (Photo MOSFET) with an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £3.20 (£3.84) 25+ £2.56 (£3.07) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
DPST-NO (2 Form A) | DPST-NO | AC / DC | 60V | 200mA | DIP-8 | Through Hole | - | PC Pin | 20mA | 10ohm | 3.75kV | - | 0.8pF | - | 1µA | ASSR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASSR-1611-001E
![]() |
SW03786 |
Solid State Relay (SSR), 2.5A, 60V BROADCOM The ASSR-1611-001E is a 1-pole high current Solid-state Relay, ASSR series, consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltai...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £5.70 (£6.84) 25+ £5.04 (£6.05) 50+ £4.42 (£5.30) 100+ £4.09 (£4.91) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
SPST-NO (1 Form A) | SPST-NO | AC / DC | 60V | 2.5A | DIP-6 | Through Hole | - | PC Pin | 20mA | 0.1ohm | 3.75kV | - | 0.8pF | - | - | ASSR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASSR-1410-003E
![]() |
SW03788 |
Solid State Relay (SSR), 0.6A, 60V, SO4 BROADCOM The ASSR-1410-003E is a general-purpose Solid State Relay with SPST-NO contact and surface mount terminals. This ASSR-14-series 1-form-A relay (Photo MOSFET) with an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £2.35 (£2.82) 25+ £2.10 (£2.52) 50+ £1.96 (£2.35) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
SPST-NO (1 Form A) | SPST-NO | AC / DC | 60V | 600mA | SO-4 | Surface Mount | - | Gull Wing | 20mA | 1ohm | 3.75kV | - | 0.4pF | - | 1µA | ASSR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASSR-1228-302E
![]() |
SW03789 |
Solid State Relay (SSR), 0.2A, 60V, DIP8, SMD BROADCOM The ASSR-1228-302E is a 1-pole Solid-state Relay, ASSR series, consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £1.95 (£2.34) 25+ £1.84 (£2.21) 50+ £1.60 (£1.92) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
DPST-NO (2 Form A) | DPST | AC / DC | 60V | 200mA | DIP-8 | Surface Mount | - | Gull Wing | 25mA | 10ohm | 3.75kV | - | 0.8pF | - | 1µA | ASSR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASSR-1510-003E
![]() |
SW03787 |
Solid State Relay (SSR), 1A, 60V, SO4 BROADCOM The ASSR-1510-003E is a 1-pole Solid-state Relay, ASSR series, consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £4.39 (£5.27) 25+ £3.91 (£4.69) 50+ £3.42 (£4.10) 100+ £3.16 (£3.79) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
SPST-NO (1 Form A) | SPST-NO | AC / DC | 60V | 1A | SO-4 | Surface Mount | - | Gull Wing | 20mA | 0.5ohm | 3.75kV | - | 0.4pF | - | - | ASSR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
AQY216EHA
![]() |
SW04904 |
Relay, Photomos, SPNO, SMD, 600V PANASONIC The AQY216EHA is a Solid State Relay with SPST-NO contact and through hole terminals. This AQY-series PhotoMOS GU-E 1-form-A relay features extremely low closed-circuit offset voltage to enable control of low-level analogue signals without distortion. • Co...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £2.72 (£3.26) 25+ £2.06 (£2.47) 50+ £1.98 (£2.38) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
SPST-NO (1 Form A) | SPST-NO | AC / DC | 600V | 50mA | DIP-4 | Surface Mount | - | Gull Wing | 50mA | 120ohm | 5kV | - | 0.8pF | - | 1µA | PhotoMOS AQY21 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
AQY212S
![]() |
SW04895 |
Relay, Photomos, SPNO, SMD, 60V PANASONIC AQY212S is a PhotoMOS® GU SOP 1 Form A solid state MOSFET relay. Suitable for telecommunication (PC, electronic notepad), measuring and testing equipment, factory automation equipment, security equipment, computers and industrial robots applications. • Min...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £1.47 (£1.76) 25+ £1.31 (£1.57) 50+ £1.18 (£1.42) 100+ £1.04 (£1.25) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
SPST-NO (1 Form A) | SPST-NO | AC / DC | 60V | 500mA | SOP-4 | Surface Mount | - | Gull Wing | 900µA | 2.5ohm | 1.5kV | - | 1.5pF | - | 1µA | PhotoMOS AQY | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
AQY210KS
![]() |
SW04902 |
Relay, Photomos, SPNO, SMD, 350V PANASONIC AQY210KS is a PhotoMOS® GU SOP 1 Form A short circuit protection latch type MOSFET relay. Suitable for modem and telephone equipment, measuring and testing equipment, security equipment and industrial equipment applications. • Miniature SOP4-pin package • ...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £4.65 (£5.58) 10+ £3.64 (£4.37) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
SPST-NO (1 Form A) | SPST-NO | AC / DC | 350V | 120mA | SOP-4 | Surface Mount | - | Gull Wing | 1.1mA | 35ohm | 1.5kV | - | 0.8pF | - | 1µA | PhotoMOS AQY21 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
VOM1271T
![]() |
SC18071 |
Photovoltaic MOSFET Driver with Integrated Fast Turn-Off, Solid-State Relay, 47uA Out, 24us Delay, SOP-4 VISHAY The VOM1271T is a standalone optically isolated MOSFET Driver. Unlike conventional MOSFET drivers, which require an external power supply to provide VCC and or VDD rails to the driver itself, this obtains all the required current to drive its internal circ...
You previously purchased this product.
View in Order History
|
|
Each (Supplied on Cut Tape)
|
1+ £1.73 (£2.08) 10+ £1.55 (£1.86) 100+ £1.26 (£1.51) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
- | - | - | 8.4V | 10mA | SOP-4 | Surface Mount | 4Pins | Gull Wing | - | - | 4.5kV | -40°C | - | 100°C | - | - | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |

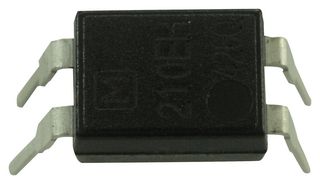

AQY210EH
![]() |
SW04899 |
Relay, Photomos, SPNO, Through, 350V PANASONIC The AQY210EH is a Solid State Relay with SPST-NO contact and through hole terminals. This AQY-series PhotoMOS® GU-E 1-form-A relay feature extremely low closed-circuit offset voltage to enable control of low-level analogue signals without distortion. • Con...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £4.12 (£4.94) 25+ £3.37 (£4.04) 50+ £2.86 (£3.43) 100+ £2.69 (£3.23) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
SPST-NO (1 Form A) | SPST-NO | AC / DC | 350V | 130mA | DIP-4 | Through Hole | - | PC Pin | 1.2mA | 25ohm | 5kV | - | 0.8pF | - | 1µA | PhotoMOS AQY21 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
AQY210S
![]() |
SW04896 |
Relay, Photomos, SPNO, SMD, 350V PANASONIC AQY210S is a PhotoMOS® GU SOP 1 Form A solid state MOSFET relay. Suitable for telecommunication (PC, electronic notepad), measuring and testing equipment, factory automation equipment, security equipment, computers and industrial robots applications. • Min...
You previously purchased this product.
View in Order History
|
|
Each
|
1+ £1.32 (£1.58) 25+ £1.21 (£1.45) 50+ £1.10 (£1.32) |
Restricted Item
Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Min: 1
Mult:
1
|
SPST-NO (1 Form A) | SPST-NO | AC / DC | 350V | 120mA | SOP-4 | Surface Mount | - | Gull Wing | 900µA | 25ohm | 1.5kV | - | 1.5pF | - | 1µA | PhotoMOS AQY |
